DIMENSIONS

Length overall:                  41.75m (137' 0")

Beam:                               7.76m (25' 6")

Draught 2:                        2.75m (9' 0")

Displacement:                  275 metric tons

Gross tonnage:                320 tons

Net tonnage:                     97 tons

CONSTRUCTION

Hull/Superstructure: Steel / Aluminium

Deck material:                     Teak

External Designer:               De Voogt Naval Architects

CLASSIFICATION & CERTIFICATIONS

Classifcation Society: Registro Italiano Navale (RINA)

PERFORMANCE

Maximum Speed:                13.7 knots

Cruising Speed:                   11.0 knots

Fuel consumption:               110 litres per hour at 11 knots with 25% reserve

Range (nm):                         3500nm @ 11kn

TANKAGE

Fuel:                              43,112 Litres

Fresh water:                   8,300 Litres

Black water:                   2,115 Litres

MACHINERY

Engines:                          2 x Caterpillar, C32, 660 HP

Engine hours:                  94hrs /94hrs (08.08.2022)

Generators:                      2 x Northern Light 99kw Generators (recently overhauled)

Generator hours:              Port 8769 Hours – Stbd 9393 (08.08.2022)

PROPULSION & STEERING

Reintjes Gearboxes

Twin straight Shaft Drives

Twin 5 bladed Propellers

Hydraulic Steering System and Steering Pump

STABILISERS

Stabilisers at anchor and underway

Stabilisers details:          New ABT- Trac Zero Speed Stabilizers

MECHANICAL

Mechanical Equipment

New ABT- Trac Zero 100HP Bowthruster

New 660HP C32 Caterpillar diesel Engines with New Reintjes Transmissions

New Technicold Chilled water AC system with all new AHU and FAMUs

New Aritex Sliding Doors in Salon and Sun Lounge

New Class Windows weather deck and bridge

New Weather Tight and water Tight Doors Weather Deck and bridge Deck

New Severn Trent Sewage Treatment System

New RWO Oily Water Separator

New Exhaust 24 V exhaust Bypass Valves

New Livos Ventilation system with Fire Dampeners

New Marquipt 4000 Deck Crane

New Cramm Hydraulic garage door with dogging mechanisms

New Atlas 100KW Frequency Converter

New Maxwell Docking Winches

New Headhunter Marine Heads throughout

New Art-El MSB and Distribution panels

New Cathelco System (Marine growth prevention)

ELECTRICAL

Atlas 99kV Frequency Converter and Step-Up Transformer

Victron Battery Chargers (4) - New 2016

Victron Battery Monitoring System

COMMUNICATION & NAVIGATION EQUIPMENT

V Sat – Sailor 500 Satellite Communications
Iridium Pilot
VHF: 2 x Icom M502
Servowatch monitoring System
Chart Plotter with Nobletec Timezero
Auto Pilot: Simrad AP70 Mk2
Koden KGC300 Satellite Compass
Furuno GP150 GPS x 2
Furuno FE700 Depth Finder
Cassen & Plath SENSO course off course alarm
TVRO – Sailor 200 Satellite Television
Panasonic PABX KX-TES824 16 Extensions
Furuno 2117 72 mile colour w/ARPA and AIS
Furuno 2127 96 mile colour w/ARPA and AIS
Furuno FA170 AIS
Furuno DS80 Doppler Log
Simrad Precision 9 Backup compass
Cassen & Plath Type 21 Compass
Furuno PB200/RD33 Weather Station
Furuno LH3000 Loud Hailer
Furuno NX700B Navtex

ENTERTAINMENT

The yacht is equipped with a Hi-media Audio/Video Library which is operated through the vessel Wi- Fi. There are Sonos systems in 4 areas of the yacht, Master Cabin, Salon, Sky Lounge and Sundeck. The media is controlled through a common remote in each cabin and area. There are 6 Wi-Fi zones throughout the yacht. Guests can play their own material from their devices using the Wi-Fi and Sonos systems.

DOMESTIC APPLIANCES, EQUIPMENT & LAUNDRY

New Galley Equipment

Electrolux Icon Combination Oven

Kitchenaid 36” Induction Cooktop

Maytag (2) Side by Side Refrigerators

Kitchenaid 30” Induction Cooktop

Industrial Dishwasher

Kitchenaid Undercounter Dishwasher

Trash Compactor

Wolf Deep Fryer

Subzero wine chiller (Model KUWS24RSSS) - Butler's Pantry

Vessel

2 x Maytag Washing Machines

2 x Maytag Driers

3 x Kitchenaid outdoor Refrigerators (Stainless Steel)

3 x Kitchen aid Out Door Ice Makers

Kitchenaid Wine cooler

Sub Zero Wine cooler

Bar Equipment

Kitchenaid Stainless Steel icemaker (Model KUIC18NNXS)

Refrigerator (Model KORU06RSS)

DESCRIPTION and ACCOMMODATION

Upper Sun Deck
Is accessed from a starboard stairway on the boat deck and is the perfect area aboard this Feadship for fun in the sun with everything you need to relax.

Forward of the mast is a 4 person Jacuzzi surrounded by two large built in sunbeds.

Aft of the mast is a full bar and barbeque area. The bar houses a refrigerator and ice-maker along with its own entertainment system. The whole area is covered by quickly removable sun shades that can be adjusted to all sun conditions

Bridge
The bridge has been totally refitted and has all equipment that is necessary to make a voyage anywhere in the world. A large, leather bench seat is located behind the helm, sandwiched between flag storage and the electronics panels.

To port is the full berth Captain’s cabin which has a navigation table and its own Ensuite Bathroom

Sky Lounge
Accessed from the midship stairway, the sky lounge is in its self its own entertainment location. It features a full bar with ice maker, refrigerator and wine cooler, a modern state of the art entertainment system and a 50” flat screen television. Two automatic electric sliding doors allow access to the boat deck.

Boat Deck
The boat deck is convertible to make a massive entertainment space when the vessel's tenders have been launched. A custom overhead sunshade, suspended from the centrally mounted deck crane, covers a dining table for 12 people.

Forward of the bridge is a bunny pad that provides stunning ocean views while underway or just to simply enjoy sunbathing.

MAIN DECK

Starting forward is the Master Cabin

The full beam Owner's Cabin features a centre line king-size bed with built in nightstands on either side facing a 60’’ flat screen television. The spacious and private Master Stateroom has a full width En-suite Bathroom and combined wardrobe. To port is a built in vanity and to starboard a full entertainment centre with state of the art equipment

Galley and Butler's Pantry

Between the dining room and galley is the butler’s pantry that acts as a staging point for the serving of meals. It is well appointed with plenty of storage and boasts a multiset zone Subzero wine cooler.

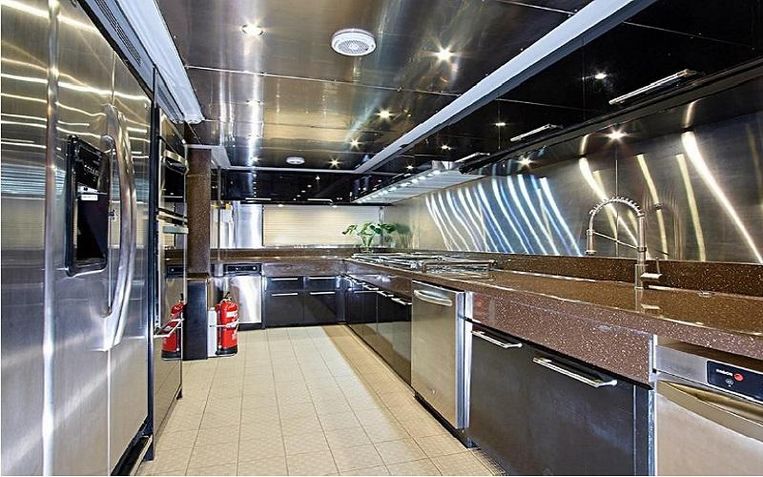

The Galley is well appointed with 2 induction hobs, a commercial dishwasher and a backup domestic unit plus 2 large refrigerators and combination oven. The Galley is a Class rated fire zone with fire doors and automated fire extinguishing system.

Salon and Dining Room

The well-appointed salon has a full length lounge to port with custom mahogany coffee table all floors are teak laid.
At the centre is a TV cabinet cum entertainment, plate and cutlery stowage, which doubles as a buffet table .

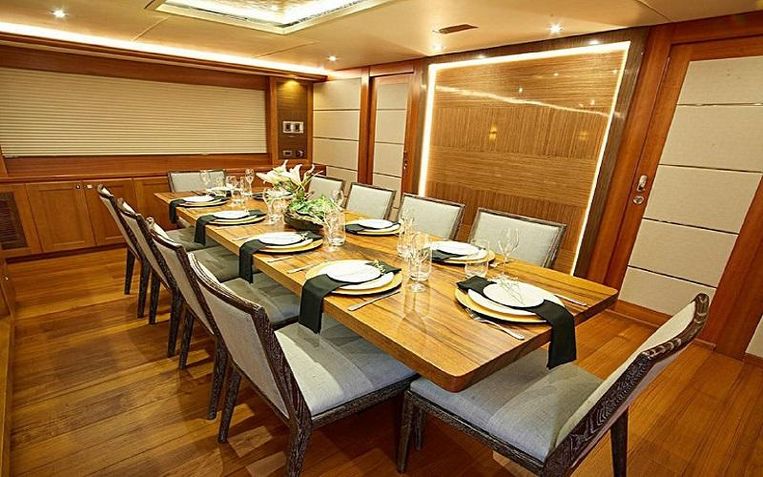

Forward is a large custom made mahogany dining table that seats 10. The Salon boasts large windows to let natural light in and to take in the beautiful views.

Aft Deck

This Mediterranean style aft deck lends itself to be utilised as a lounge and outdoor dining location. A built in forward facing wrap around settee with dining table can comfortably accommodate 12 people. It is an expansive area tailor made as a comfortable, spacious entertainment area. Incorporated into the exterior bar is a refrigerator and ice maker.

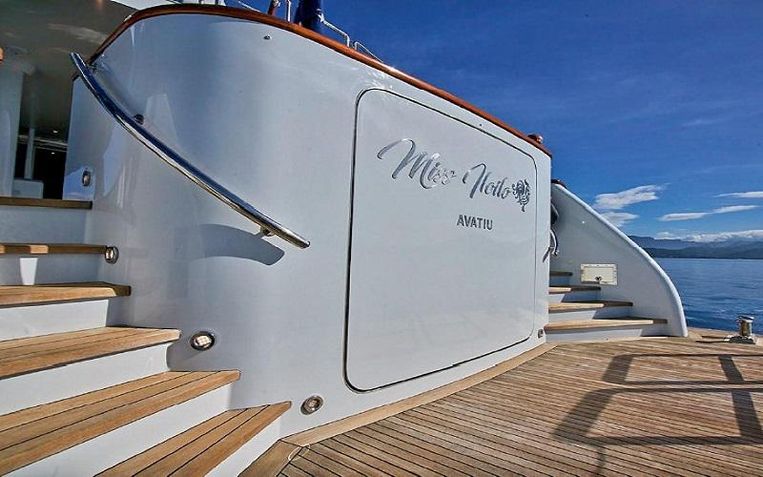

The aft bathing platform is set up for water lovers with fishing rod holders and a dive platform.

Below Deck Accommodation

With the floor plan of a much bigger yacht ‘’Miss Iloilo’’ boasts 4 Guest Staterooms with full En-suite Bathrooms. Each Stateroom offers excellent privacy with spacious and well equipped entertainment systems and televisions.

The Guest Staterooms are located aft down a stairway on the starboard side in the Main Salon. The Guest Foyer is a large area with storage and its own bar refrigerator.

The VIP Stateroom is to port and is comfortable and spacious with a queen size berth and built in night stands to either side. The room is well appointed with modern state of the art facilities.

The remaining Guest Cabins are identical with oversized twin beds and private En suite Bathrooms. Each cabin has a Pullman berth, great for extra guests. Each cabin has their own individual entertainment centre and televisions

Crew & Galley

The Galley was originally down in the crew area and was relocated to midship on the Main Deck. It has all new modern appliances.
The crew area was expanded to include an extra cabin for a total of 5 x 2 berth crew cabins with En suite Bathrooms. There is a new crew mess with 50’’ television and entertainment system and new Laundry Area.

Stern Lazerette

The stern of the yacht was remodelled to incorporate a storage Lazerette. Access is through a hydraulically operated garage door and a water tight hatch to the Main Deck above. The Atlas Frequency Converter is housed in its own water tight, air-conditioned and fire proofed compartment. The area has a Brownies Third Lung Dive Compressor as well as plenty of storage space for dive equipment. The area also has the emergency access from the Guest Cabins via a water tight hidden hatch.

DECK

Rebuilt Equipment:

Watermakers Inc Watermakers and Membranes

Steen Anchor Winch

Steering Pump

Overhauled Northern Lights Generators

Kahlenberg Air Horns

Steen Anchor Windlass – Type 19 – Size 48 – 12 HP- W6835 220V 3 Phase - Overhauled with New Motor

and magnetic clutch

Anchors (2) Poole HHP Type TW 500lb (225 kg)

Anchor Chain 3/4” (19mm) Short Link (2) 450 feet (135 metre) Combined length 900’

Maxwell Docking Winches – New

Marquipt 4000 Deck Crane - New

TENDER & TOYS

New 6.5 M Novurania Tender New 5.0 M Novurania Tender

Both Tenders were purchased new in 2013 and stored until nearing completion in 2019.

1 x 21.5 foot (6.5 meter) LX650 center console Novurania custom tender powered by a 260HP Yanmar

Diesel inboard engine. 290 Hours reported September 2021.

1 x 16.8 foot (5 meter) EQ500 center console Novurania custom tender powered by a 180HP Yanmar Diesel inboard engine. This tender doubles as an emergency / crew vessel. 90 Hours reported

September 2021

Note: Subject to change and/or negotiation during the buying process.

DIVING

Brownies Third Lung Dive compressor - Installed new in 2017 - 0 hours Dive Ladder

SAFETY & SECURITY

Safety Equipment

Liferaft (4) RFD 12 Man

Liferings (4) with rope and lights Flares (4) sets

Carlisle and Finch Searchlights ACR Cat I and Cat II EPIRBs ACR Emergency VHF Radio (2) Door and Port Light Alarms

Fire Fighting Equipment

Fire, heat and smoke detectors throughout integrated into 4 Servowatch monitors

Kidde Fixed FM200 system - Engine Room Kidde Fixed FM200 system - Atlas Comp. Kidde Deep Fryer Foam system – Galley Fire Extinguishers (32) throughout Vessel Built in Emergency Diesel Fire/bilge Pump Fire Hydrants (5) with hoses throughout Emergency Smoke Hoods Every Cabin EEBD (2) Engine Room

Complete Fire Suits (2)

Emergency diesel fire/bilge pump - Approximately 10 hours running time with monthly testing.

Security Equipment

Camera: (5) Port and Starboard Aft and Engine Room

Ships Safes (3) – Captain/Owner/Bridge

OTHER FACILITIES

Swim Platform – Stern Garage

This area is a Water Sports Paradise that can satisfy any water lovers needs. From lounging, Swimming, Diving or Fishing there is no better platform to meet the Ocean. This area was specifically custom designed removing what was a fishing cockpit that incorporated a storage Lazarette. Now with an extended aft deck and Euro Transom leading to the swim platform. Access to the Stern Garage/Lazarette has been made with a hydraulically operated door and a watertight hatch to the salon deck above. The Atlas frequency converter is housed in its own watertight, air-conditioned and fireproofed compartment. The area has a brownies third lung dive compressor as well as plenty of storage space for dive equipment and water toys. The area also has emergency access from the guest cabins via a watertight hidden hatch.

REFIT LOG

NOTABLE HIGHLIGHTS:

REFIT TO RINA PLEASURE CLASSIFICATION

NEW CAT C32 660HP ENGINES AND TRANSMISSIONS

NEW ABT TRAC ZERO SPEED STABILIZERS

NEW SERVOWATCH MONITORING AND FIRE SYSTEM

VIRTUALLY EVERYTHING ONBOARD IS NEW OR CHECKED OFF AS IN TOP CONDITION

CAPTAIN REFIT REPORT AVAILABLE TO INTERESTED BUYERS

Steel plating replaced where required and entire hull ultra sounded

All Overboard Valves replaced throughout with Econonosto Class Valves with certification

Fire Valve Manifold replaced with Econosto Manifold

Fire Pump Replaced

Bilge Manifold replaced with Econosto Manifold

All Bilge piping replaced All Fire lines replaced

Emergency diesel fire pump supplied and installed

All raw water piping, cross overs and sea chests replaced with copper Nickle pipe

All Fuel piping replaced

Fuel, Black water and bilge piping relocated to stairwell with spill traps

All Black water, grey water hot water and fresh water pipes replaced.

New Pumps

New Headhunter Hydrophors

New Itur Fuel Gear Pumps

New Oberdorfer 24V Emergency fuel Transfer Pump

New Oberdorfer Gear Oil Transfer Pumps

New 2.5" Fire Pumps New 3" Bilge Pumps

New Alfa Laval Fuel Centrifuge

New Chilled Water Circulation Pumps - Technicold

New Raw water Pumps to chillers

New Giannchi Black Tank Macerator Pump

New Interior fit-out

MISS ILOILO  has been completely rebuilt and refitted with new equipment throughout including New Main Engines.

She was refitted to RINA Classification.

The hull was thoroughly thickness gauged and any area of deteriorated or marginal plating was replaced resulting in an as new hull.

All new pipework, new Class certified valves and the sea chests for the Main Engines and Generators were replaced.

The bridge deck was fitted with a Marquipt 4000 hydraulic deck crane and strengthened with RINA approval to be able to carry two tenders up to 6.5 metres and weighing 1700 Kilograms each.

All teak decks were pulled up and replaced with Grade A Burmese teak. Deteriorated deck plating was replaced as part of the process.

The vessel has had all the electrical wiring replaced by class rated cable and the vessel has all light fittings and sockets replaced throughout. A New Main switch board and distribution panels were also installed.

New equipment fitted includes; New Caterpillar C32 660Hp Main Engines. New ABT-TRAC Zero Speed Stabilisers. New 100HP Bow Thruster. New  Technicold Air-conditioning system. New Severn Trent Sewage treatment plant, New Navigational Equipment. New Galley equipment,

Call or Email for a full specification of MISS ILOILO.

This is  a great opportunity to purchase a Classic Feadship in "as new" condition and priced to sell.

 Please call or email for full specification and equipment list.
