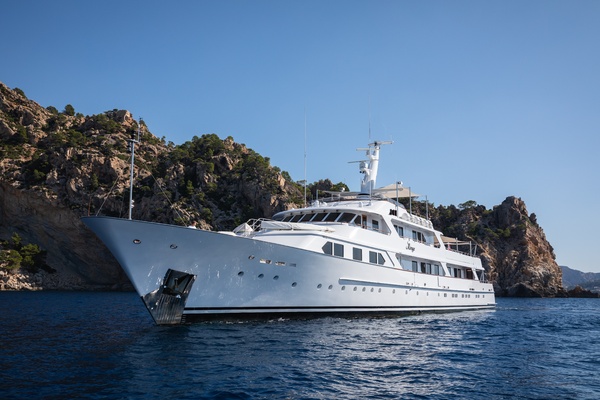

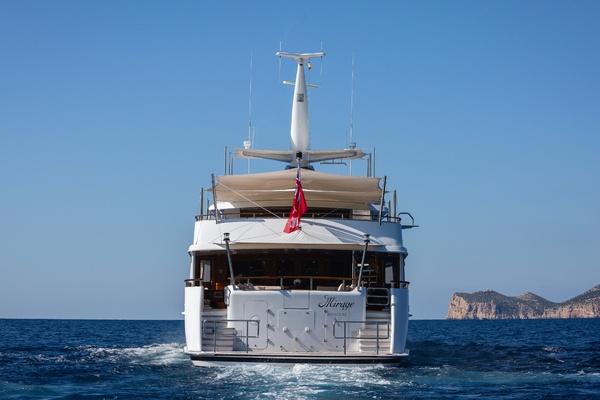

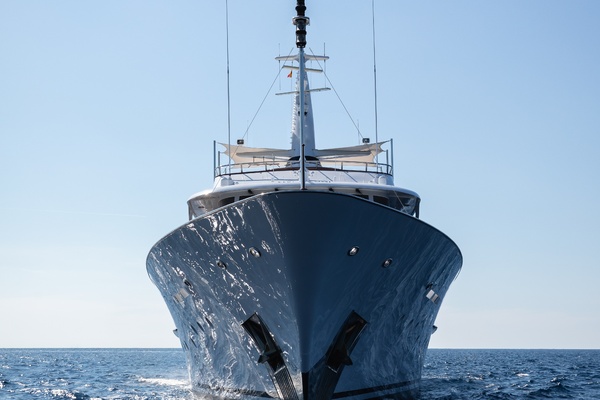

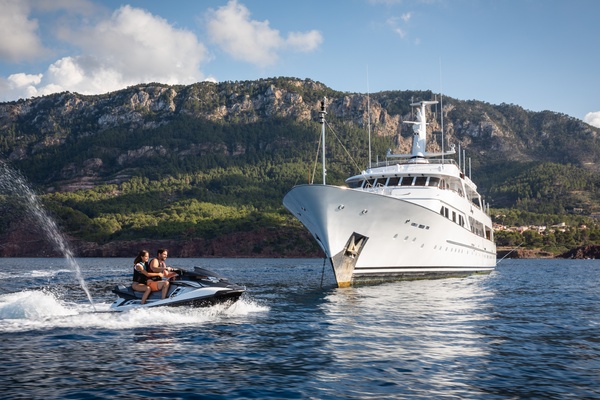

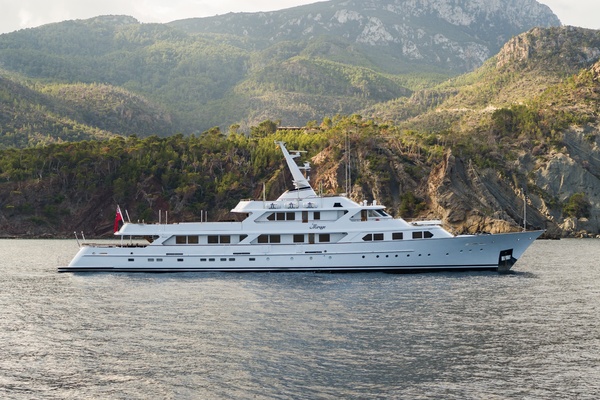

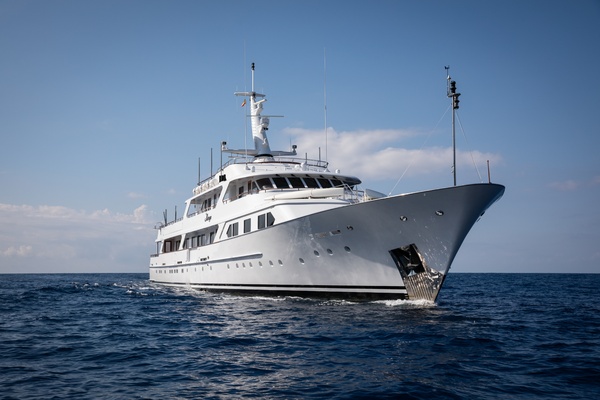

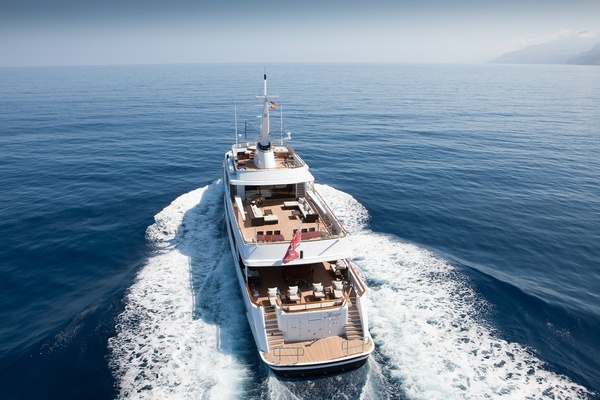

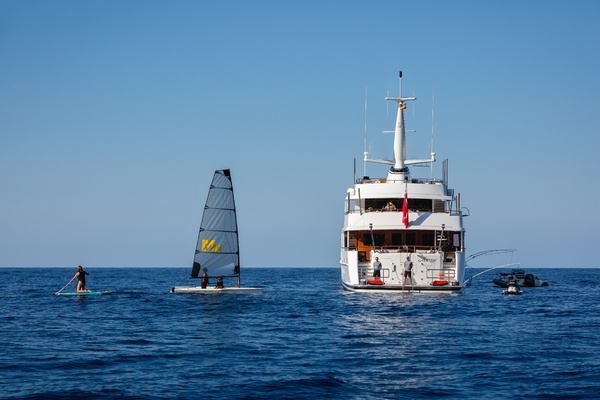

1979 Feadship 173'

MIRAGE

MAIN SPECIFICATIONS

MAIN SPECIFICATIONS

Length Overall: 173' (53.04m)

Beam: 28' 2" (8.66m)

Draft: 10' 6" (3.22m)

Year: 1979

Refit: Every Winter 2012 to current

Type: Motor Yacht

HIN: 384661

Gross Tonnage: 498

Displacement: 552 MT

Hull Config: Full Displacement

Guests: 20

Crew: 15

CONSTRUCTION

Builder: Feadship

Naval Architect: De Voogt

Exterior & Interior Design/Stylist: De Voogt/Design Unlimited

Hull Material: Steel

Deck Material: Steel

Superstructure: Aluminium

Classification: ABS

SPEED

Maximum: 15 knots

Cruising: 14 knots

Economical: 12 Knots

Range: 4,500 Miles

Consumption @ Cruising: @1000 rpm=250 L.P.H

CAPACITIES

Fuel: 21,451 Gal / 81,200 L

Water: 9,774 Gal / 37,000 L

Grey Water: 1083 Gal / 4100 L

Black Water: 1109 Gal / 4200 L

Lube Oil Capacity: 475 Gal / 1800 L

Waste Oil Capacity: 290 Gal / 1100 L

Sludge Tank: 687 Gal / 2600 L

CLASSIFICATION & CERTIFICATIONS

Flag: Isle of Man

MCA: Yes

ISM: Yes

Classification: ABS

ISPS: N/A

MACHINERY

MAIN ENGINES

Engine Type: 2 x D399 Caterpillar

Horsepower: 2250(1678kw total)

Engine Serial Numbers: Port = 91B1038. Starboard = 91B1037

Main Engine Hours (Port): 24,262 Hours (Mechanical engine driven service meter counters)

Main Engine Hours (Stbd): 23,851 Hours

GENERATORS & ELECTRICITY

Output: 2 x 155 Kw

Generators: Northern Lights MI066H.5IHL x2

Generator Fuel Consumption: Max- 47 L.P.H (each) at full load.

Port Generator Hours: 18248 Running Hours

Starboard Generator Hours: 18302 Running Hours

Shore power: ASEA 100KVA x2.

Generator Starting: 24 Volt.

Emergency: 24-volt emergency battery bank.

BATTERIES

Main Engines Starting: 8 x 225Ah each. Trogan 8D AGM. 24 Volt.

Generator Starting: 4 x Trogan 8D225Ah each. AGM. 24 volt

Emergency: 4 x Trogan 8D 230Ah each. AGM 24 volt.

Radio: 2 x EcoBatt 270Ah each. AGM 24 volt.

House: 4 x Varta 260Ah each. AGM 24 volt.

PROPULSION & STEERING

Drive: 3:1

Gearboxes for Main Engines: Reintjes

Stabilizer: Quantum QC1500 Zero Speed

Stabilizer Underway: Yes

Stabilizer at Anchor: Yes

Steering System: Wills Ridley, UK

OTHER MACHINERY

Water Makers: 2 x HEM series 30

Water Softener: HEM K60

Silver ions dosing plant: HEM SISB40

Bow Thruster: Ocean Yacht Systems, 99KW electric motor.

Fuel Separator and Filtration: Alfa Laval MAB 103B Separator Racor. Micfill ST600

Sewage System: Hamman HLC SLIM 02.

Fresh Water System: Gianneschi pressure pump x4 @4 bar

Oily Water Separator: DVZ 150 FSU.

Air Compressor: Kaiser KCT550-100

Air Conditioning: TITAN- Custom Bitzer plant. X3 compressor 540,000 BTU total. R407c.

COMMUNICATION AND NAVIGATIONAL EQUIPMENT

PILOTHOUSE

SAT COM: 2 x Starlink, 1 x Intellian OW11 (OneWeb), Peplink 5G via E-Hub Ultra

Telephone System: Avaya IP phone system in all crew cabins

SSB /HFMF: SAILOR 6301

VHF: 2 x SAILOR 7224

Cellular Phone System: GSM Cellular System

Intercom: Jotron Phontech 4061

Sat-C: SAILOR 6018

Ships Computer: Dell

Crew Radios: Motorola SL2600

BNWAS: Fitted

Navtex: SAILOR 6004

AIS: Saab R6 Supreme Class A AIS with R6 CDU

NAVIGATION SYSTEMS

Integrated Bridge System: Raytheon Anschütz Synapsis INS

Bridge Displays: 5 x Hatteland multifunction displays

Radar: 2 × Furuno FAR-3220 25 kW X-Band Radar (1 × 8t antenna, 1 × 6.5ft antenna)

ECDIS: 2 x Furuno FMD-3200-BB

Gyrocompass: Anschütz STD-22

Auto Pilot: Raytheon Anschütz

Depth Sounder: Furuno FCV-1200L

GPS: 2 x SAAB R6

AIS: SAAB R6

Thermal Camera: FLIR M-Series – Wheelhouse Roof

ENTERTAINMENT SYSTEMS

AV System: Crestron

AV Distribution: Crestron DigitalMedia / DM-NAX

AV Control: Crestron TSR touch-screen remotes throughout guest cabins and guest areas

Media: Apple TV, Sky Stream and Blu-ray

Global HDMI: Vessel-wide HDMI source distribution

AirPlay: Crestron DM-NAX multi-zone AirPlay

Exterior Audio: James Loudspeaker system

TVs: Sony and Samsung TVs throughout guest areas and cabins

AV Integrator: Halo – Beyond AV/IT

Other: Playstation 5 and Karaoke Machine

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooktop: Salvis induction hob.

Oven: 2 x SALVIS 611 steam ovens

Microwave: Miele

Refrigerator/ Freezer: Custom built walk-in fridge and freezer 2015

Additional Refrigerator/Freezer: Custom built

Dishwasher: Both by Miele 1 in crew mess and 1 in stew pantry

Galley Potwasher: Hobart

Ice Machine: Hoshisaki x3

Coffee machine: Gaggia

CREW MESS

Fridge: Miele

Dishwasher: Miele

LAUNDRY

Washing Machines: 3 x Miele

Dryers: 3 x Miele

DECK EQUIPMENT

Anchor Windlass: Steen hydraulic YMA 22

Aft Warping Capstans: 2 x Steen electric YMVS12

Anchors: 2 x SEC Pool N types, Lloyds approved approx. 430 kg each

Anchor Chain: Class approved, 192.5 meters long each side 22mm link diameter

Boat Crane and Davits: 2 x Nautical Structures EZ4400 on boat deck, Opacmar on foredeck

Passarelle: Extending and retractable at stern, with call point

TENDER & TOYS

Tenders:

●       (1) 2021 - 6.6m BSC with 150hp Yamaha

●       (1) 2019 - 6.6m BSC with 150hp Yamaha

Toys:

●       (2) 2023 Jetskis - Yamaha FX 3-seater HO Cruisers

●       (2) FS5 Seabobs including (2) Seabob Fast Chargers and (3) T1500 RAMBSS Lithium Battery Storage Modules

●       (1) Awake Ravik S Jetsurf including (2) Batteries and (1) Fast charger unit

●       (1) 2 Person Kayak -Inflatable

●       (2) Stand Up Paddleboards-Inflatable

●       (1) Bamboo Stand Up Paddleboard

●       Male, female and child wakeboards, wakeskate, wakesurf, monoski, adult and child dual skis

●       Jobe couch, Half-Pipe, Donut, Bandwagon Towable Toys

●       (8) Sets of scuba gear (Rendezvous Diving Only)

●       Multiple sets of wetsuits & snorkel gear

●       Kitesurfing Kit

●       Wing-foiling Kit

●       Dive Platform off Boat Deck

Gym Equipment:

●       NordicTrack Commercial 2450 Treadmill

●       Weight bench, weights and dumbbells

●       Exercise matts

●       Swiss ball

Note: Subject to change and/or negotiation during the buying process.

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

SECURITY

CCTV System: AXIS

Cameras: 6 x external cameras – 2 x Mast (Port & STBD), Port Waist, STBD Waist, Main Deck Aft and Swim Platform

FIRE FIGHTING EQUIPMENT

Fire Control System: Consilium Monitoring

Fire Extinguishers: Yes – Powder, CO2, AFFF

Fire Alarm System: Consillium smoke,heat,flame detectors

●       Various hydrants and hoses throughout vessel

●       2 x sets BA gear, with built in Dräger FPS-COM-PLUS comms and 4 tanks

●       5 x EEBD's in various locations

SAFETY EQUIPMENT

Life Rafts: 16-man x 6 rafts

Life Rings: 2 with orange smoke, 2 with strobe

EPIRBS: 2 – 1 in float free arrangement on Sundeck, 1 stored in bridge with LSA grab bags.

Flares: 8 x Red Parachute, 14 x Red Handheld, 8 x Orange Smoke

Medical Equipment: Fully compliant with MCA Notice 1768

ACCOMMODATION AND LAYOUT

Sundeck

●       Sun awning

●       Jacuzzi

●       Treadmill

●       Bow flex free weights

●       Pull-Up Bar

●       Various yoga mats & rollers

●       Drinks fridge

●       Solid WIFI coverage

●       Airplay

●       Accessibility to a stewardess call button

Upper Deck

●       2 x Sun Awnings

●       Outdoor formal dining for 20

●       Outdoor lounging for 12

●       Moveable Bar

●       Drinks Fridge

●       Electronic Drop-down blinds

●       Sky lounge (equipped with a 85´ Sony TV)

●       Day head

●       Dedicated radio room

●       Bridge

●       Solid WIFI coverage

●       Airplay

Main Deck

●       Sun awning

●       Formal outdoor seating for 12. Table also changes to intimate 6-seater setting

●       Other various informal seating options for 12 inside and outside

●       Formal interior dining for 12

●       Main Salon TV 32´ Samsung also powered by TSR Remote

●       Solid WIFI coverage

●       Airplay

●       Exterior Icemaker

●       Drinks fridge

●       Day head

●       Custom fitted wine fridge

●       Accessibility to a stewardess call button

●       Pantry (interior ice maker, drinks fridge)

●       Galley

Lower Deck

●       T Cupboard (Decorations storage cupboard)

●       Drinks Fridge

●       Linen cupboard

●       Toiletries cupboard

●       Uniform cupboard outboard of the STBD Mid cabin

●       Forward Stores – Engineers Cupboard

Guest Accommodation

All staterooms have individual climate (heating & cooling) control and are ensuite cabins.

Each is equipped with a custom sound system which accompanies Apple TV, Sky Stream & Airplay this all being used and controlled via the TSR Remotes.

You can also connect your device via the WIFI to connect onto airplay in your cabin as well as in all guest areas. Each cabin has it owns airplay stream.

Owner's Suite, Forward - Main Deck:

King size bed with ensuite bathroom with shower and a jet bath, a 65´ Sony 4K TV with a TSR Remote.

Significant desk for two people to work from

VIP Suite, Main Deck:

King size bed with ensuite bathroom with shower, a 55´Sony 4K TV with a TSR Remote

2 Guest Staterooms, Forward - Lower deck:

Queen size bed with ensuite bathroom with shower, an LCD 42´Samsung TV with a TSR Remote

3 Guest Staterooms, Lower deck:

Twin size bed w/pullman with ensuite bathroom with shower, an LCD 32´ Samsung TV with a TSR Remote

1 Guest Staterooms, Lower deck:

Twin size bed w/pullman with ensuite bathroom with shower & bath, a LCD 32´Samsung TV with a TSR Remote

REFIT / MAINTENANCE DETAILS

2025/2026

●       Boat Deck Teak Replaced

●       TVRO’s and VSAT domes removed and mast modified for One Web antenna

●       Replacement of Sky Lounge Silk Panels

2024/2025

●       Sundeck Teak recaulking

●       Main engine checks- Turbos, cooler rebuilds, Thermostats replaced. Various gaskets and oil leak prevention.

●       Generator 2000-hour servicing by authorized dealer

●       AMS complete monitoring system upgrade to Bluewave V.3

●       Crew mess: Replacement of Miele dishwasher

●       Full deck crane 10-year overhauls: x2 boat deck crane. X1 foredeck crane

●       Passerelle overhaul

●       Galley pot washer replacement

●       Propeller shaft aft oil seal replacements

●       Deck winches/windlass overhauls

●       HEM water maker overhauls’ pump rebuilds. Membrane replacements

●       Master Cabin Carpet Replacement

2023/2024

●       Main Deck Aft Teak recaulking

●       Complete replacement custom-built air-conditioning plant installed in engine room 540,000 BTU.

●       All interior air con fan coils replaced, and heating elements installed for local heat control

●       Steering system- Hydraulic Rams overhauls. hydraulic hose replacements

●       Crew Area refurbishment

2022/2023

●       Swim Platform Teak recaulking

●       Generator 2000-hour servicing by authorized dealer

●       Stabiliser system: 8000-hour full overhaul

●       Laundry- Replacement of x6 Miele washers/driers

●       Propeller shaft aft oil seal replacements- Akerboom

●       Bow thruster overhaul

●       Fresh water tanks: full sandblast and re-paint. Welding repairs.

2021/2022

●       Main Engine works- Front and rear crankshaft seals replaced. Cooler rebuilds. Cooling pump rebuilds

●       Main engine port engine fuel pump drive rebuilt

●       Bow hull plating replacements. Complete new bow thruster tunnel installed

●       Special survey (5 yearly) inspection- ABS incl hull survey

●       All hull valves overhauled

2020/2021

●       Generator 10,000-hour top end overhaul and servicing- Recon cylinder heads installed

Crankshaft seals replaced rear and front. Alternator inspections.

●       Galley steam ovens complete x2 replaced- Salvis 611T installed. Induction hob replaced. All Salvis galley equipment inspected.

●       Foredeck hatch replacement. Teak replacements foredeck

●       Emergency steering system- hand wheel and pump installed lazerette

2019/2020

●       Full Paint job

2018/2019

●       Main engine alignment checks and vibration analysis. Vulkan Drive coupling replacements.

●       Reintjes main propulsion gearboxes: complete overhaul by authorized dealer

●       Stabiliser system: 8000-hour full overhaul

●       Lazerette ice machine replacement

2017/2018

●       Main engine works- Cylinder heads removed and all head gaskets replaced. Governer overhauls. High pressure fuel pump overhauls. Cooler rebuilds. Cooling pumps overhauls.

●       Generator 2000-hour servicing by authorized dealer

2016/2017

●       Sky lounge full interior rebuild and structural repairs

●       Port side lower guest cabin x2 strip out and rebuilds

●       Steering system full overhaul power packs and rams- Wills Ridley

●       Propeller shaft aft seal replacements

2015/2016

●       Generators 4000-hour servicing. Coolers, turbos, injection pumps, cooling pumps overhauls.

●       Propeller shaft intermediate shafts removed and inner oil lip seals replaced

●       Fuel tank monitoring sensors complete replacements

2014/2015

Rebuild Phase 3

●       Complete rebuild of the bridge, master stateroom and sundeck.

●       Complete new mast with all comms/antennas installed.

●       Circular 8 person Jacuzzi and surround seating installed on sundeck.

●       Complete new AVIT system installed throughout the vessel.

●       Replacement 5-blade fixed pitch propellers installed.

●       Hull and superstructure paint works completed.

2013/2014

Rebuild Phase 2

●       Completed rebuild of all 8 guest staterooms.

●       Extensive engine room and equipment refit including complete replacement Northern Lights M1066H generator x 2.

●       Main switchboard and vessel power distribution replacement including complete rewire

of vessel.

●       Replacement shore power convertors installed.

●       Complete replacement Zero Speed Quantum stabilizer system.

●       HEM Reverse Osmosis plant installed with 20,000 liters per day production capacity.

●       Engine room sound insulation upgrade.

●       Complete new vessel SIMON monitoring system installed.

●       Replacement foredeck Opacmare jet ski lifting crane installed.

●       Complete replacement Frigomar air conditioning chilled water system installed throughout vessel including room fan coils.

●       Replacement stainless steel clad walk-in

●       fridge and freezer cabinets complete installed.

●       Galley equipment refit including replacement steam ovens, induction hob, Salamander and fryer.

●       Main engine inspections- Main and big end bearings inspected.Turbos, coolers, injectors, oil pumps, cooling pumps rebuilds.

●       Main engine compression testing

2012/2013

First works under the current Owner consisted of complete rebuild in 3 phases.

Rebuild Phase 1

●       Complete rebuild of:

o  Crew Area

o  Skylounge

o  Main Saloon and Dining Area

o  Guest Lobby

o  Upper and Lower Dayheads

Winter 2008/2009

●       Completely new air conditioning system throughout the yacht.

●       New larger Jacuzzi with 15 sqm. sunbed for top deck.

●       New independent Bose entertainment system in all guest staterooms.

●       2012/2013

●       Extensive refit of sky lounge and main salon/dining.

2006/2007

●       Complete refit at Pendennis Shipyard.

●       Stern extension with air-conditioned guest lazarette and dayhead.

●       Complete new main deck (salon, day head, VIP and Master stateroom) and skylounge with outdoor cinema.

●       All guest bathrooms with new fabrics, fillings, floorings and AV.

●       New interior floors on every deck. Aft deck 50% new teak and Bridge completely new teak and furnishing.

●       New bar on aft deck. New spiral staircase from aft deck to bridge deck.

●       VSAT with Wi-Fi throughout the yacht, Sonos sound system and outdoor cinema on skylounge.

●       Complete Caterpillar main engine and generator rebuilds.

●       Completely new CCTV system throughout.

●       Complete hull overhaul with completely new paint job of the whole yacht .

●       Upgraded to MCA standards.

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Listing MLS by Yachtr.com
