2006 Ferretti Yachts 83'

La Bella Vita

Refit Summary 2021/2022

• New Garmin Electronics Package – Pilothouse and Flybridge
• New Interior Furnishings including Flooring, Wall Coverings, Cabinetry, Headliners, Custom Remodeling (Closure) inside of Hatch to the Flybridge to accommodate Custom Bar Area, New Soft Goods, New Window Treatments, New Tables, Countertops, TVs, and Stereos
• New Galley Makeover including all New Appliances, Flooring, and Countertops
• New Cushions and New Canvas Covers; Flybridge, Aft Deck, and Foredeck
• New Bimini Top with Three-Sided Enclosure
• New Cabana Room with Large Screen TV, Ice Maker, Refrigerator, Sofa, Chairs, Stereo Speakers; Aft Garage Area
• Props and Shafts Serviced
• New Bottom Paint and Zincs
• New Underwater Lights
• A/C System Upgraded (2 New Aqua Air A/C chillers - 2023)
• New Water Maker
• New Hot Water Heater
• A/C Ducts Professionally Cleaned
• Dometic Breathe Easy In-Duct Air Purifiers Installed (Black Light/UV)

Layout & Accommodations

Beginning aft there is a hydraulic passerelle that extends from a pocket at the starboard stern area. The hydraulic transom lowers down to reveal a “Cabana” room area which features a large screen TV, Stereo System, Refrigerator, Ice Maker, Sofa, and Chairs that can be situated on the swim platform at water level. Underwater lights make this area extremely comfortable and enticing. Two (2) 100-amp power cords are accessed via a Cable Master System on the portside steps.

Port and Starboard teak tread steps lead up to the teak aft deck. On the port and starboard side of the aft deck are compartments that house hidden mooring cleats and warping winches and have storage for mooring lines and/or towing harnesses.

The aft deck table sits in front of a forward-facing bench seat that can sit four (4) and there is space for another 4 or 5 chairs to seat 8 or 9 total. Just forward of the table to port is a Large Screen TV mounted from the overhead and the entrance to the crew quarters. On the starboard side are teak tread steps leading to the flybridge and underneath the steps is an Ice Maker. Both port and starboard sides offer walkaround decks to access the port and starboard amidship doors or to the foredeck area.

From the aft deck, are large sliding stainless steel and glass doors that allow entrance to the Salon. To port is an Occasional Chair, Side Table, Custom Ottoman, and L-Shaped Sofa. To starboard is an under-counter Refrigerator, Bottle Storage Cabinet, Large Screen TV on Lift, Stereo System, Satellite TV Boxes, and Storage Compartments. The flooring is faux wood throughout the salon, galley and pilothouse.

Moving forward to port is Custom Storage Cabinets Outboard, Round Custom Dining Table with 6-Chairs on the Centerline, and to starboard a Custom Bar Area that features an under-counter Ice Maker, Wine Cooler, and Deluxe Coffee Maker, all housed in custom cabinetry. (This area used to be a stairway to the flybridge but has been professionally closed off to enhance the interior spaces.)

Just forward of the dining area to port is the galley which has been completely updated with all new appliances, flooring, counters, etc. Forward on the portside in the galley is an access door to the portside deck. Forward of that is a doorway (pocket door) for access into the pilothouse.

To starboard across from the galley is the access door to the side deck and beside that doorway is a stairwell leading down to the Master and Guest stateroom areas.

Further forward, up two steps is the Pilothouse which houses a full array of Electronics (new in 2022), Helm Station, Dinette Table with Seating (the table can be lowered to form a single berth area and a pocket door can seclude the pilothouse from the salon areas).

Pilothouse

• Touch Screen Displays Garmin 1243 GPSMAP 12”– New 2022 (3)
• VHF Icom M-506 – New 2022
• Mic Repeater Icom Command– New 2022
• Instrument Gauges: Temperature, RPMs, Oil Pressure, and Voltage
• Compass
• Console Panel Padded Dash with Black Lexan
• Auto Pilot Garmin – New 2022
• Bow Thruster American with Toggle Controls
• Stabilizer Gyro Sea Keeper Zero Speed Control
• Trim Tab Controls
• Engine Shutdown System Fireboy
• Gear/Throttle Shifters MTU
• Ferretti Ship System Monitor
• Spotlight Jabsco
• A/C System – New 2022
• Helm Chair with Hydraulic Controls
• Gallin Windshield Washers/Wiper Controls (3 Wipers/Washers)
• U-Shaped Dinette with Teak Trimmed Table and Burlwood Inset (Table Drops Down so it is Flush with the Seat Cushions and be Converted into a sleep Area) – New 2022
• Storage Underneath the Seats and Behind the Cushions
• Safe Digital Mounted under the Dinette Seat
• TV/Computer Monitor (Wall Mounted) – New 2022
• Color Printer/Copier/Scanner – New 2022
• Wood Laminate Flooring – New 2022
• Window Cover Black Mesh (Outside)
• Fire Extinguisher
• GPS Garmin NMEA 2000 Antenna – New 2022
• New Headliner – New 2022

Salon

• Custom Headliner – New 2022
• Overhead Lighting LED – New 2022
• Wine Cooler Zephyr – New 2022
• Refrigerator Isotherm
• Ice Maker U-Line – New 2022
• Large Screen TV on Lift – New 2022
• Stereo Amplifier Pioneer – New 2022
• Speakers Bose (5)
• Custom Ottoman with Storage Space – New 2022
• Electric Privacy Shades Hunter-Douglas Port and Stb. – New 2022
• Manual Salon Door Drapes – New 2022
• Chair Upholstered – New 2022
• L-Shaped Sofa with Storage Underneath – New 2022
• Custom Bar area with Jura Gourmet Coffee Machine, Glass and Cup Storage – New 2022
• Circular Frosted Glass Dining Table with “Lazy Susan” Center Insert – New 2022
• Upholstered Chairs (6) – New 2022
• Flooring Wood Laminate – New 2022
• Storage Areas for Crockery/Flatware/Glasses
• Assorted Designer Throw pillows and Cushions – New 2022

Galley

• Access Door to Port Side Deck
• Pocket Door Forward to Pilothouse
• Door to Forward Salon Area
• Microwave Oven Panasonic Stainless Steel – New 2022
• Stove Top Miele 4-Burner – New 2022
• Oven Kitchen Aide Stainless Steel – New 2022
• Exhaust Fan Bosch (Over Cooktop) – New 2022
• Refrigerator/Freezer Bosch Stainless Steel Side-by-Side Pull-Out Refrigerator Drawer with Pull-Out Freezer Compartment Below – New 2022
• Sink Stainless Steel Large Capacity – New 2022
• Ample Cabinet and Drawer Storage Spaces
• Pantry Compartment Pull-Out
• Countertops with Tile Accents White – New 2022
• Wood Laminate Flooring – New 2022
• Garbage Disposal Badger In (1/2 HP) – New 2022
• A/C Control Pad
• Fire Extinguisher (Under Sink)

Master Stateroom - Full Beam Amidship

• King Berth Facing to Port with Spectacular Views through the Hull Window
• Ensuite Head with Oversized Shower and Dual Rainfall Showerheads and 2 Hand-Held Nozzles (Large Windows at the Waterline with a Privacy Screen)
• Vanity Area with 2 Sinks, Mirror and Excellent Storage Spaces
• Closet with Ample Drawer/Storage Spaces
• Large Flat Screen TV with Direct TV – New 2022
• Stereo System Bose
• Lounge Area with Desk and Chair
• Carpet – New 2022
• Headliner - New 2022

VIP Stateroom- Forward

• Queen Berth Centerline with Storage Underneath
• Stereo System Bose
• New Headliner - 2023
• New Roman Blinds - 2023
• Flat Screen TV with Direct TV – New 2022
• Ensuite Head with Shower
• Carpet – New 2022

Guest Stateroom- Port

• Twin Side-by-Side Berths

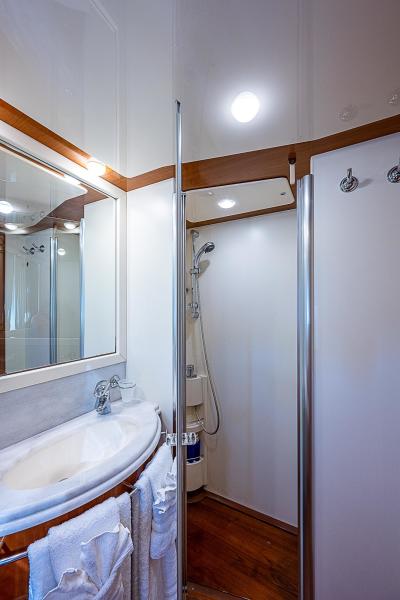

• Ensuite Head with Shower
• Flat Screen TV with Direct TV – New 2022
• Stereo System Bose
• New Headliner - 2023
• New Roman Blinds - 2023
• Ample Storage Drawers
• Nightstand
• Carpet – New 2022

Guest Stateroom- Starboard

• Twin Side-by-Side Berths with Optional Pullman Berth
• Ensuite Head with Shower
• Flat Screen TV with Direct TV – New 2022
• Stereo System Bose
• New Headliner - 2023
• New Roman Blinds - 2023
• Ample Storage Drawers
• Nightstand
• Carpet – New 2022

Flybridge

• Garmin 8616 GPSMAP 16" Touch Screen Displays with Depth/Speed/Radar/TV (2) – New late 2022
• Garmin 8600 Series HDMI Cable – New 2022
• Cable Garmin NMEA with Audio 8516 – New 2022
• Garmin USB Card Reader – New 2022
• ICOM M506 VHF Radios with Command Mic IV Handsets - 1 is Repeater (2)
• Garmin GXM54 Sat/Weather (Sirius XM Weather Overlay) – New 2022
• Garmin 604xHD Long Range Radar – New 2022
• Sonar GSD 26
• Garmin Blackbox AIS 800 – New 2022
• Garmin AIS – New 2022
• Garmin Auto Pilot – New 2022
• Garmin GC 200 Marine IP Cameras (Transom - Tender View/Engine Room Port side view, Engine Room Starboard side view) – New 2022
• Fusion Touch Screen Stereo MS-RA770– New 2022
• Sirius XM – New 2022
• JL Audio M6-770X-C-GwGw Speakers (2)
• JL Audio M6-101B-C-GwGw-4 Subwoofers (2)
• JL Audio 5-Channel Marine Amp Stereo (Stereo System is Zoned throughout with 4-Control Panels)
• KVH TV-6 System
• Direct TV Satellite Service (for all TVs) plus Direct TV Reception which can be Received on the Garmin GPS Displays (7 Boxes Total)
• Balboa Jacuzzi with Hard Cover and Cushions (Hidden Storage Areas around Jacuzzi)
• Shower by Jacuzzi Hot and Cold Hand-Held
• Besenzoni Dinghy Davit (24V, 600 KG/1,322.77Lbs.) - Rib Dinghy not included
• Sea Safe Datrex 8-Person Life Rafts (2)
• Electric grill (top mounted in cabinet)
• Weber Propane Grill
• Hatch with Teak Steps Down to Aft Deck
• Cabinet with Prep Area, Electric BBQ Grill, Sink with Hot and Cold Water, Refrigerator Underneath, and (3) Storage Cabinets Starboard Side
• TV 50” Mounted on Custom Stainless-Steel Bracket – New 2022
• Fusion XM Satellite Radio
• Bimini Top with Three-Sided Enclosure – New 2022
• Custom Sun Pad Area in the front of Flybridge Starboard Side with Cushions and Storage Beneath – New 2022
• MTU Gear and Throttle Controls
• ABT Trac Bow Thruster Controls
• Electronics Console Electric Up/Down
• Main Engine RPM/Temp Gauges
• Jabsco Spot Light Control
• Air Horn
• Trim Tab Controls
• Instrument Panel for Light Switches, Anchor Switches (Up and Down for Both Anchors)
• Arch Lighting
• Helm Seat with Cushions
• Beneath the Helm Seat is a Storage Area, an Electronics' Battery, a Master Volt Battery Charger, and a Direct TV Receiver Box.
• EPIRB Ocean Signal Class-2
• U-Shaped Dinette with New Table and New Cushions with Storage Beneath – New 2022
• Chairs (3) – New 2022
• Decks Fiberglass Non-Skid

Electrical System

• 12/24V D/C
• 120/240V A/C 60 Hz.
• New Batteries - Late 2022 (10 Lifeline GPL-4DA and 6 Lifeline GPL-4DL)
• Shore Power Cables 100Amp Single Phase Wired through Glendinning Cable Master Reels; Aft Port Transom Area (2)
• Shore Power Transformers Acme General Purpose with a Boost Feature (2)
• Isolators Gail Safe Max Galvanic (2)

Engine Room & Mechanical

• Marine Diesel 16V2000 MTU Engines / Model R160-7MI-L (2)
• Serial Numbers:        Port – 536EL01090               Starboard – 536EL01089
• Engine Hours:           Port – 1936 SMOH         Starboard – 1913 SMOH
• Electronic Throttle and Gear Controls MTU; Pilothouse/Flybridge/Aft Deck Station
• Drive Transmissions ZF Direct– Model 255 A, 2.536: 1 Ratio
• Port Serial Number: 5001 5970        Starboard Serial Number: 5001 6046
• Kohler 23KW Diesel Generators – Both Model 23EOZD in Sound Shields (2)
• Lower Generator (# 1) has 3367 Hrs. (04/23), Upper Generator (#2) has 1766 Hrs. (04/23)
• Serial Numbers: Generator #1 (Lower) – 2034116 / Generator #2 (Upper) – 2034115
• Sea – R.O. Water Maker /48 GPH – New 2022
• Bow thruster ABT
• Sea Keeper Model #26 Zero Speed Stabilizer
• Steering System Power Hydraulic; New Hydraulic Steering Pump 2022
• Fixtures 24V Tecma (6)
• Hot Water Tanks (2)
• Remote-Mounted Separ 2000/10 UMS Fuel/Water Separators with Secondary Bowls (4)

Aft Deck

• Teak Decking
• Dining Table with Dual Stainless Steel Pedestals – New 2022
• Chairs (5) – New 2022
• Bench Seat with Cushions – New 2022
• TV (Mounted from Overhead) – New 2022
• Fiberglass Molded Sink Compartment (Starboard Side of Bench Seating Area)
• Fiberglass Molded Storage Compartment (Port Side of Bench Seating Area)
• Aft Deck Sun Awning (Removeable with Optional Stainless Steel Poles to Cover Cabana Room Area) – New 2022
• Spreader Light Bar for Transom Lighting LED – New 2022
• Audio Controls Fusion
• Speakers (2)
• Aft Deck Docking Station (MTU Controls, Bow Thruster Toggle, Main Engine On/Off Buttons)
• Ice Maker Raritan

Miscellaneous Deck & Hull

• 50Kg Bruce Type Anchors with Galvanized Chain (2)
• Port Anchor has 225’ Galvanized Chain; Starboard Anchor has 325’ Galvanized Chain
• Anchor Chain Markings: 50’ All Red, 100’ All Yellow, 150’ All White, 200’ All Red/White, and 300’ All Red/Yellow/White
• Anchor Chute Dual Stainless Steel with Bow Rollers
• Anchor Wash Down System (fresh water)
• Lofrans Windlasses 24Volt with Wild Cats and Capstan Drums; Foredeck (2)
• Lofrans Snubbing Winches 24Volt; 1-Port and 1-Starboard in the Aft Deck Area (2)
• Ample Chocks and Cleats Ample Stainless Steel
• Underwater Lights – New 2021
• Besenzoni Electric/Hydraulic Davit 600Kg
• Fenders and Mooring Lines
• Boarding Gates; 1-Port and 1-Starboard (2)
• Boarding Steps One (1)
• Besenzoni Hydraulic Passerelle; Starboard Side of Transom
• Besenzoni Hydraulic Swim Ladder; Port Side of Swim Platform

Safety

• Life Rafts Datrex Sea Safe 8-Man Valise (2) - Certified 2023
• Life Jackets USCG (20)
• Throwable Devices USCG Type IV (2)
• Fire Extinguishers (9)
• Ship’s Bell – Chromed; Foredeck
• Trumpet Horn
• EPIRB Ocean Signal Class-2
• Assorted Smoke and CO2 Alarms
• Bilge Highwater Alarms (Audible and Visual)
• Fire Boy Clean Agent HFC-227 Extinguishing Systems; 2-Engine Room and 1-Generator Space (3)
• Extinguisher System Sea Fire Clean Agent FM-200 installed in the Electrical Panel in the Crew Companionway
• Bilge Pumps 24V Submersible Automatic/Manual throughout the Vessel
• Crash Suction Valves on the Main Engine Raw Water Pick-Ups
• Bilge Pump 24V Gianneschi with Manifold and Pick-Ups in various Bilges
• Navigational Lights USCG Approved
• Bilge Alarm Audible High Water; in Supply Locker on Starboard Side Walkway near Aft Deck

Salesman's Remarks

La Bella Vita is in excellent condition with many new and upgraded options (as evidenced in the above-mentioned refit). This opportunity is only due to the owner’s desire to move up to a larger vessel.

Exclusions & Disclaimer

Exclusions:

RIB Dinghy w/outboard

Sculptured Glass Hammerhead Shark

Owner's personal belongings

Any items not specifically listed in the Listing Sheet should not be considered part of the selling inventory.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. Engine and Generator Hours are at the date of the listing and provided by the vessel owner for information purposes only. Any and all information should be verified by the potential buyer and his surveyor prior to acceptance.

This vessel is offered subject to prior sale, price change, or withdrawal without notice.
