2011 Heesen Yachts 146' 44M

CASTLEFINN

Overview

CASTLEFINN was built by the famous Heesen Dutch shipyard under ABS Class rules in 2010 and delivered in 2011. The exterior of this 45-meter (146’) aluminum vessel with its sleek hull lines and multi-sized windows is elegant and recognizable as another masterwork from Heesen.

On the initiative of the present owner, all interiors were refitted to look more luxurious, yet comfortable. The keynote of this new design is the combination of white and autumn colors, as well as contrasting different textures and materials. CASTLEFINN has never been chartered so very little wear and tear; the yacht is in perfect condition. The yacht was designed to accommodate 10 guests in 5 spacious cabins, each with an ensuite bath. Four guest cabins (two of them - VIPs) are situated on the lower deck. There is an additional optional stateroom in the sky lounge with a hidden queen-size drop-down murphy bed which makes it possible to have 12 guests aboard. The full beam owner area is on the main deck and includes a master cabin, master study, an ensuite bathroom with his and hers partitions, and a wardrobe closet big enough for extended cruising.

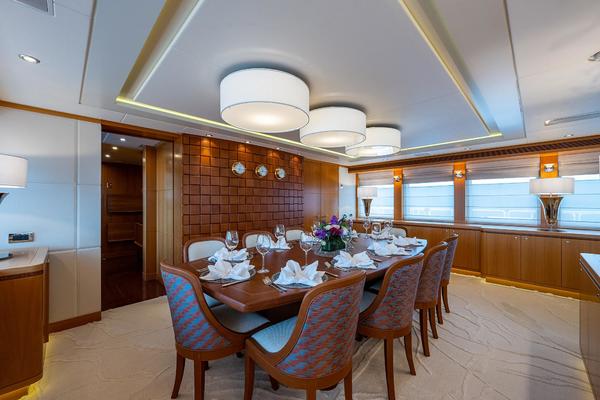

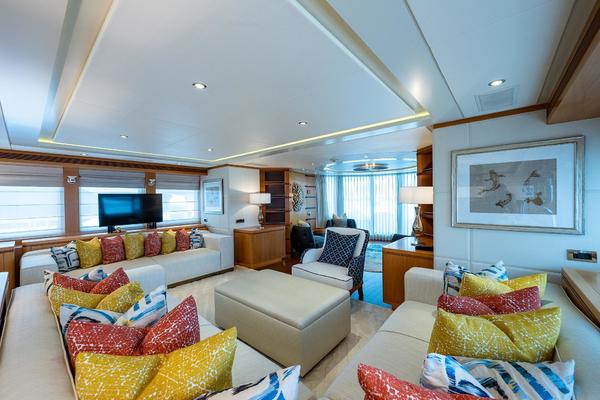

Just aft of the owner's stateroom is the main salon and dining room integrated with an aft lounge, a magnificent semicircular seating area with a panoramic view that has access to the aft deck. (For a complete sequential view of all the features and accommodations of CASTLEFINN please review the walk-through video link on this listing. The sundeck features an entertainment bar animated by a $100,000 sound system with all the amenities found in a galley including a dumb waiter useful to replenish food and drinks from the galley deck without disturbing the guests.

The Jacuzzi and lounging area are aft on the sundeck. On the lowest deck is a garage for storing a tender and water toys which can easily be modified as a beach club for an owner who would rather tow a tender. Additionally, in the garage area, there is an engineer's cabin with an ensuite bath. The 45m Heesen is extremely spacious (just below 500 GT) and is a leader among other yachts in this class.

Powered by two MTU 16V 4000 M90 diesel engines, this semi-displacement superyacht has a cruising speed of 20 knots with a top speed of 23 knots which is an excellent speed for a 146-foot yacht. At an economical speed of 12 knots with zero-speed stabilizers she has the range of a full displacement yacht (3500 nm). CASTLEFINN has the best of both worlds, speed, and range.

In 2021-2022 over 2 million dollars was spent to modernize and improve the electronics, mechanical equipment, and interior décor. The current owner went through the entire yacht and fixed or renewed all systems aboard to have years of trouble-free boating. The owner will consider a trade with a late model 120-125’ yacht.

Accommodations

Lower Deck

• 2 x Double cabins with en-suite bathroom

• 2 x Twin cabins with en-suite bathroom

• Crew accommodation

• Crew mess

• Engine room

• Tender garage and toy storage

Main Deck

• Full beam Owner's stateroom with large king-size bed, walk-in wardrobe, lobby office and bathroom with a shower and a bathtub

• Spacious salon with lounge and dining area

• Day toilet

• Main Galley

• Pantry

• Exterior aft deck lounge area

Upper Deck

• Sky lounge cinema which can be converted into a 6th cabin

• Bathroom with toilet and shower

• Exterior aft deck seating area with shading option

• Exterior dining table for up to 12 with large oval table and semi-circular sofas

• Wheelhouse

• Server room

• Exterior seating area on the foredeck

• Nicely hidden workshop and storage on the foredeck

Sun Deck

• Sunbathing set-up aft

• Jacuzzi 1200L with heating and hydromassage

• Bar

• Dining table for up to 8

• Control station

Captain & Crew

• 1 x captain’s cabin with en-suite bathroom

• 4 x 2-Bunk crew cabins on lower deck, forward

Mechanical Equipment

• 2 x MTU 16V4000 M90 diesel engines, 3.647hp (2,720kW at 2,100 RPM)

• Engine hours: 3,528 (March 2023)

• Gearboxes ZF, model BW 7550 P (PTO axial, vertically off-set)

• Direct Drive

• 2 x Schaffran propellors - five 1,380 mm blades

• 2 x 99 kW John Deere 50 Hz generators

• Electricity Three phase, 230/400 Volts, 3 wire, 1,500 rpm

• Batteries 5 in total, various types, GMDSS, emergency; Charges 8 in total, make Mass, different types

• Water Maker 2 x HEM type HEM 25/1400, new membranes in 2018

• Toilet System Jet vacuum system

• Sewage Treatment Hamann A6

• Fuel Separator Westfalia type OSD 2-02-137

• Stabilizer VT Naiad Marine system 820, stabilization at anchor and underway

• Bow Thruster HRP 1000 – 80 kW hydraulically driven

Shore Power

• 400 Volts, 3 phase

• 1 x for TV/Radio

• 1 x for Telephone

• 1 x for Freshwater

Hydraulics

• 1 x Main unit for transom door & gangway, side folding ladder

• 1 x Unit for fore-crane operation

• 1 x Unit for steering system

Air Conditioning

• Heinen & Hopman

• 2 x Chiller Units

• 2 x Sea-water pumps

• Temperature controlled by thermostats fitted in each room

Ventilation

• 2 x ventilation ribs on both sides of the engine room

• 2 x ventilators/extractors on the starboard

Water System

• 2 x Electric hydrophor Lowara

• UVA treatment installation

• Silver ionizing system

• Carbon filter

• Softener

Hot Water

• 2 x Electric boilers 200L each

• Circular system all over the boat

Navigation Equipment

• Radar Furuno Black box x band radar, 12 kW with 6,5 scanner, type FAR-2117BB

• Compasses Furuno Satellite Compass/GPS; Navigat X MK1 C.Plath Gyrocompass

• GPS MX 420 Navigation System

• Autopilot Navipilot 4000

• DGPS Receiver AP NAVIGATOR MK12

• AIS Furuno Universal AIS FA - 150

• Navtex Furuno Navtex NX-700

• Depth Sounder Furuno dual frequency color video, type FCV-1100L

• Wind/Speed Log 3 x B&G Hydra-2000

• Electronic Chart Transas NS-3000

• BNWAS Watchkeeper

• Weather Station 4 x Furuno RD-30 repeater crew mess/captain cabin/engineer cabin/garage

• Ships Computer Network Heinen & Hopman

• Fog Horn Kahlenberg model T1

• Searchlights 2 x ARC Electronics RCL-600

• Windscreen Wipers 5 x marine type windscreen wipers Hollex 235 KS

Monitoring

• Main monitoring system in wheelhouse

• 3 x Fixed cameras, 1 x each side & 1 x aft

• 1 x Motorized camera in engine room

• 1 x Night vision camera mounted on Mast NUTi

Communication Equipment

• Satcom SeaTel

• Inmarsat-C Sailor TT-3606E

• Loudhailer 1 x Icom IC-M421 simplex/duplex VHF crew mess

• Raytheon RAY-430

• AV System Plex Media Server with Philips Pronto control panels

• Telephone System 20 x portable phones Gigaset

VHF

• 2 x handheld VHF radio Jotron TR20

• 1 x Sailor simplex/semi-duplex RT-5022

• 1 x Sailor duplex VHF station RT-4722

• 2 x Icom simplex/semi-duplex VHF station for both wing stations IC-M59

Internet

• VSAT Seatel

• 1 x D-link DWR-921 modem 4G Mobile Internet

• 10 x internet signal booster throughout the boat

Deck Equipment

• Anchor Capstan 2 x electric stainless steel Staalart CAS23-17,5.ED

• Bollards 8 x stainless steel bollards on the main deck, 2 x on the swim platform

• Side Boarding Ladder 1 x electric/hydraulic operated, stainless steel and wood

• Swim Ladder 1 x Stainless steel swim ladder

• Gangway Hydromar, 5,95 meters length, hydraulic

• Elevator 1 x Lodige Dumbwaiter from main deck to upper deck

Anchor Chains

• 2 x 150 m chains Ø 17,5 mm

• Control box for 230V/200VAC 50 Hz 3ph-24VDC for anchor winch dual direction dual speed

• 2 x stainless steel chain stoppers mounted on baseplate of the anchor winch

• 2 x tensionless square chain roller

• 2 x stainless steel devil claws

Crane/Winches

• 1 x hydraulic foredeck crane Hydromar

• 2 x winches for tender in the garage

Entertainment Equipment

Entertainment System Video

• 5 x Apple TV in each cabin

• 5 x Remote Fusion stereo systems

• Plex Media Server with Philips Pronto control panels in each cabin and salon

• Satellite TV & Internet

Entertainment System Audio

• Internal Bluetooth network

• Plex audio server

• Ipod airplay

• Google Chromecast audio

Guest Double Cabins

• 2 x Samsung 27” LED 7 series

• 1 x Philips Pronto control panel

• 10 x built in speakers (5 in each cabin)

• 2 x Apple TV

Guest Twin Cabins

• 2 x Samsung 32” LED Full HD

• 1 x Philips Pronto control panel

• 10 x built in speakers (5 in each cabin)

• 2 x Apple TV

Main Salon

• 1 x Samsung 55” LED Full HD

• 1 x Linn Classik Movie System

• 1 x Apple TV

• 1 x Philips Pronto TSU9800 docking station

• 1 x Philips Pronto control panel

• 7 x inbuilt ceiling speakers

Master Cabin

• 1 x Samsung 55” LED Full HD

• 1 x Philips Pronto control panel

• 9 x inbuilt ceiling speakers

Skylounge

• 1 x Samsung 32” LED Full HD

• 1 x Philips Pronto control panel

• 2 x inbuilt ceiling speakers

Sundeck

• 4 x JL audio external speakers

• 2 x JL audio subwoofer

Crew Mess and Crew Cabins

• 1 x Sony 32”

• 6 x inbuilt ceiling speakers

Captain’s Cabin

• 1 x Scepter 22” LCD

• 1 x inbuilt ceiling speakers

Deck

• 12 x inbuilt ceiling speakers JL audio (4 main deck, 2 foredeck, 2 upper deck, 2 sun deck)

Galley and Laundry Equipment

Galley & Pantry Equipment

• 1 x Gaggenau oven/grill

• 1 x GIGA ceramic cooktop

• 1 x GIGA professional oven

• 1 x GIGA Tapenyaki Griddle

• 1 x Miele dishwasher

• 2 x Foster Gastro refrigerator 600 litres (compressor in engine room)

• 1 x Foster Gastro freezer 600 litres (compressor in engine room)

• 1 x Liebher Comfort refrigerator 80 litres

• 1 x Eurocave wine cooler for 175 bottles

• 1 x Hoshizaki Ice Maker

Laundry

• 2 x Miele washer professional

• 2 x Miele drier professional

Public Areas

• 2 x Frigonautica fridge in Owner's cabin and lowerdeck desk corridor

• 1 x GAMKO professional bar fridge 150 ltrs in Sky lounge

• 1 x Hoshizaki icemaker in Sky lounge bar

Exterior Decks

• 2 x Frigonautica fridge on the sundeck

• 1 x Hoshizaki icemaker on the sundeck

Tenders and Toys

• 1 x Novurania 650, 190 HP, inboard Volvo Penta D220 (in the garage)

• 1 x Novurania 360TR, outboard Yamaha Four Stroke 20HP (on the aft deck)

Safety Equipment

Firefighting

• Fire detector Minerva Marine T2000 with control station in the wheelhouse

• 3 x CO2 system in the engine room and galley

• 25 x portable powder fire-extinguishers

• 5 x foam fire-extinguishers

Safety

• 4 x Zodiac life rafts 12 pax each

• 4 x lifebuoys

• 28 x SOLAS inflatable lifejackets

• 25 x SOLAS immersion suits

• Safety Plan approved by MCA

• 1 x 406 EPIRB

• 2 x TRON 9Ghz SART

• 1 x rescue boat Novurania 360TR

Refit 2022

• Painted bottom

• Replaced all the batteries

• Rebuilt starboard Gen Motor

• Rebuilt port Gen 368 hours since rebuild at 10,379 hours

• Replaced Tool chests

• Installed onboard monitoring system

• Replaced Starboard Radar

• Replaced KVH antenna

• Replaced VSAT antenna

• Replaced Flybridge monitor

• Installed new Nav software

• Replaced Furuno Sounder

• Replaced pilot house VHF Radio

• Replaced Nav computer and mouses

• Replaced GPS

• Installed K4 antenna

• Replaced Navigation Gyro compass

• Installed Dish Receivers

• Installed K4 TV remotes

• Replaced Main Salon TV

• Replaced Crew quarters bedding

• Replaced Interior & Exterior cushions

• Replaced exterior covers

• Replaced exterior sun screens

• Installed 3 remote Fusion stereo systems

• Repaired Ice Makers

• Replaced Hull/fuel tank plating

• Repaired oil leaks on Naiad system

• Repaired A/C

• Repaired Hamans system

• Repaired Fuel polisher

• Repaired and descaled black water lines

• Cleaned and repaired all fuel tanks

• Cleaned Black water tank

• Replaced crew quarters carpet

• Cleaned all a/c ducts

• Replaced hydraulic steering lines

• Repaired Stern thruster

• Replaced 3 air handlers

• Repaired Starboard Anchor capstan

• Repaired Garage door seal

• Replaced Life raft release cables

• Replaced Life Rings/Lights

• Replaced some fire equipment

• Updated Safety plan

• Conducted Converter Maintenance/Repair

• Replaced davit cable

• Repaired Freezer/Refrigerator

• Replaced deck lines

• Repaired horn

• Repaired crew dishwasher

• Repaired washers

• FDDA repair of main engines

• New Injectors on both engines

• Wax and Buff exterior

Refit 2018

Hull

• Fully new paint hull in cream color

• Teak decks renewed (100%)

• Change deck lights to 120 dots LEDs

• Antifouling Trilux 33 mic International – 4 layers at the ship’s bottom

Tech

• PLEX media server installation

• New Gigaset phones

• All new TVs (Samsung LED Full HD)

• New audio and subwoofers installed on the sun deck

Machinery

• Water pumps replacement

• New water purifying system: silver water ionizer, carbon filter, water softener

• MTU service every 250 hours

• Generators service

• 12 x bilge drying system valves change

• New emergency bilge pump

• Water makers serviced

• New compressors for Lowara freezer

• New freshwater pumps

• New sea chest baskets

Exterior

• New sound system installation (JL audio sound and bass)

• New awning added to the sundeck (extending up to 2.7 meters)

• Exterior furniture re-upholstered with Sunbrella fabric

• New teak exterior armchairs with Sunbrella cushions

• New marble tables at the bar on the sun deck

Interior

• All new carpets made by silk, wool & bamboo fibers (by Oliver Treutilein, Germany)

• New Italian custom-made furniture by Ludovica Masceroni (sofas in salon and master bedroom, armchairs in salon and skylounge, chairs in the dining area)

• New lamps by Ludovica Masceroni

• New custom-made wall panels in salon, master bedroom and guest cabins

• Chemical cleaning of curtains and mattresses every year

• Marble polishing in all bathrooms

• New furniture at WC and showers

• New LED lights

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
