2021 Custom Phil Jones
60' (18.29 m) -Jills Magic II
- Hoopers Island, Maryland, United States
- Commercial Boats
- Power
- Used
- Diesel
- Fiberglass Hull
- VID# 2795112
2021 Custom Phil Jones Build Chesapeake Bay Deadrise Excellent Condition
$ 595,000 USD
1306 Main Street
FL 34236
Sarasota, FL USA
1-941-365-9095
info@sysyachtsales.com
1306 Main Street
FL 34236
Sarasota, FL USA
1-941-365-9095
info@sysyachtsales.com
Overview
Motivated Seller! Price reduced to $690,000.00. This 60 foot custom Chesapeake Bay style deadrise was built by Phil Jones of the P.L. Jones Boatyard in Hooper's Island, located on the Eastern Shore of Maryland. Jones is arguably one of the most respected boat builders in the region with many decades of experience. Based off of Jones’ own ocean designed hull, this boat was first launched in June of 2021 and was built as a buy boat for the seafood industry in the mid-Chesapeake area. It has wide open decks, a 17 foot, six inch beam and powered by a pristine CAT C-32 engine. This impressive and unique vessel is built to last and must be seen to appreciate.
SYS Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Curtis Stokes & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Gallery
Quick Specs
Category: Commercial Boats
Vessel ID: 2795112
LOA Feet60'
LOA Meters18.29''
Beam Feet17'
Beam Inch6''
Draft Max Feet4'
Bridge Clearance Feet17'
Fuel Tank (Gallons)1000
Fuel Tank (Liters)3785.41
TypePower
ConditionUsed
LOA: 60' (18.29 Meters)
Type: Power- Used
YearYear: 2021
Beam: 17' 6''
Draft Max: 4'
Single Berths: 1
Cabins: 1
Sleeps: 1
Crew Cabins: 1
Crew Sleeps: 1
Maximum Speed: 27 Knots
Cruise Speed: 22 Knots
Cruise Speed22
Fuel Type: Diesel
Hull Material: Fiberglass
Hull Shape: Planing
Air Conditioning: Yes
Bridge Clearance: 17'
Stabilizers: None
Fuel Tank: 1000 Gallons (3785.41 Liters)
Gross Tonnage: 56
Displacement: 56 tonnes
HIN/IMO: PHJ6002J0920
Imported: No
Designer: P.L. Jones
Builder: P.L. Jones
Engines
Engine 1
- Engine Make: Caterpillar
- ModelEngine Model: C32
- YearEngine Year: 2021
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 1200.00
- Power KWPower KW: 894.84
- Feul TypeFeul Type: Diesel
- HoursHours: 500.00
- Engine LocationEngine Location: Middle
Generators
Generator 1
- Generator KW: 9.00
- Generator RPM: 0.00
- Generator Hours: 500.00
Full Details
History
This Jones 60 foot Chesapeake Bay workboat was built in 2021 at the P.L. Jones boatyard located on Hooper's Island, located on the Eastern Shore in Dorchester County, Maryland. Phil Jones is a renowned boat builder in the Chesapeake region, having decades of boat building and repair experience. Jones arguably builds some of the finest commercial boats on the Bay. This boat was built off of Jones own ocean designed hull and is of modified V design, a planing hull and a flared bow. It has fiber reinforced plastic (FRP) construction with a deep FRP keel molded into the hull for enhanced stability. It was built as a buy boat for the mid-Chesapeake Bay seafood industry, hence the large open deck and huge cargo area. This boat is fully capable of handling massive loads and built for stability in the worst of conditions. Powered by an immaculate Caterpillar C32, 1200 horsepower powerplant, the boat reportedly tops out at 27 knots with a cruise speed of 22, impressive for a 56 gross-tons rated vessel. As with all Jones boats, this vessel is overbuilt from quality products with attention to detail and the experience of a respected boat builder. With fewer than 600 hours, this fine vessel is in its youth, awaiting its next owner and adventure.
Walk Through
Stepping onto the wide, spacious deck of the Jones 60, one immediately notices how truly immense and capable this boat is. Overhead is an overconstructed aluminum canopy, providing ample shade throughout the deck area. The engine compartment cover is located amidships, is of low height construction, is unobtrusive and powered by an electric motor. The engine compartment is large and allows easy access to all areas of the engine. The deck area is capable of holding literally hundreds of bushels of seafood. A large cargo door is located port side amidships and allows for loading and unloading of cargo. Another cargo door is located on the port side entering into the pilothouse area, which also allows for additional cargo. A second pilothouse door is located to starboard and entering that door moving forward a large helm area is positioned to starboard. All controls needed are within arm's reach of the helm. Large opening windows on each side of the pilothouse as well as a large forward windshield allows for easy visibility. A hatchway in the floor allows access to the bilge area, which again, is large and spacious providing enough room for a large size adult to maneuver unencumbered. Forward of the helm area is a V storage area in the bow area.
Power Plant
Powered by a single Caterpillar C32 V-12 twin turbocharged, intercooled engine. New in 2021. Less than 600 hours. Two Quickshift EC300 by Twin Disc, one at each helm station. Exhaust system is flexible hose to a custom-made raw water-cooled exhaust with FRP silencers, exiting through fittings at the transom. Prop shafts are three inches in diameter and of stainless steel construction. Cooling system is a closed reservoir type system, with raw water cooled exhaust. The transmission is a Twin Disc Model M6X-6599A with a 2.24 gear ratio. A single aluminum 700 gallon diesel fuel tank, with Racor model 1000 fuel water separator. Low oil pressure and overheat alarms.
Generator
Onan by Cummins diesel generator. Model 9MDKDL, 9 kw. 120/240 ac. Less than 500 hours. Located midship to port. Sound protected, closed coolant, raw water exhaust. Racor 500 water/fuel separator. New 2021.
Electronics and Navigation System
Twin Garmin GPS Map 8612 XSV 12 inch touchscreens with GPS Plotter Sounder Fishfinder with multiple displays. Garmin open array radar. CAT digital multiple display engine gauge. Standard horizon Matrix VHF. One Danforth Constellation compass at helm. Airmar model B75M transducer. Fusion Model MS-RA70NSX, Fusion speakers.
Running Gear
Nibral five blade propeller three-inch stainless steel prop shaft. Single I beam strut. Rudder is stainless steel 31 inch wide by 40 inch long with a stainless steel two-and-one half inch rudder post. Bennett hydraulic trim tabs. Vetus bow thruster.
Air conditioning
Cruisair by Dometic Model DTG16-1171-410. Single self-contained unit in the forward bilge area with a digital control. Compressor rated 16,000 btu's. Thru hull Groco sight style strainer, Dometic electric pump raw water cooling system with raw water and sea strainer assembly.
Electrical System

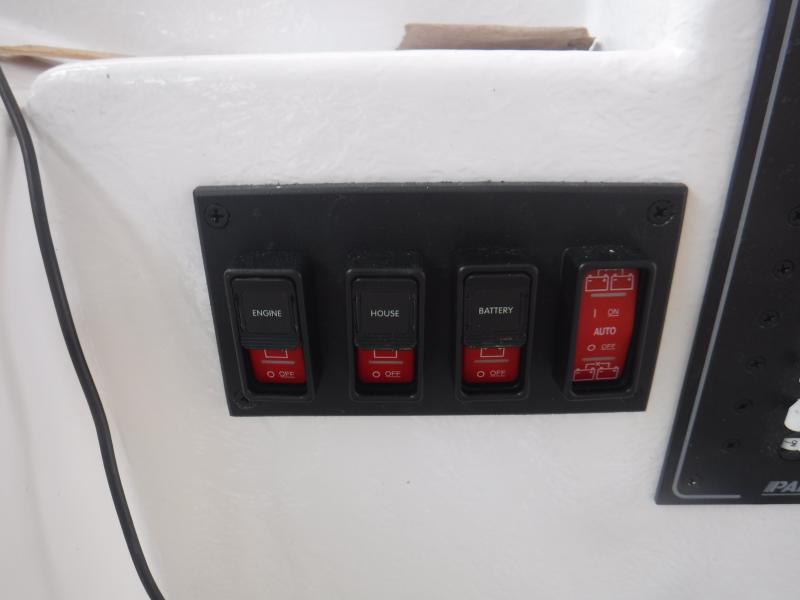

Six Napa model 1170 lead acid batteries power a 12/24 volt system. Three battery banks, two house, two starting and two generator batteries. All batteries in parallel in approved boxes. Four main battery switches mounted at the helm. Over current protected panels, fuses and circuit breakers. Alternators on the main engine and generator. Bilge high water alarm.
Steering System
Danfoss hydraulic steering system. Two hlems, one in the pilothouse and one in the cockpit starboard side approximately three quarters to stern. Danfoss model OSB 200 ON, reinforced flexible hose and metallic fittings. Cylinder and ram actuator style.
Ground Tackle
Danforth style 75lb. Three braid marine grade nylon rode, approximately 150 feet. Galvanized thimble and shackle. Galvanized chain of approximately 10 feet.
Bilge Pumps
Two Rule 2000 gph aft
Three 3700 gph forward
All wired with remote float switches
Other
Freeboard is fifty two (52) inches from the waterline to top of the stern
Scuppers are 22 inches from the waterline to the bottom of the scupper
Hull construction is fiber reinforced plastic
Deck fittings area stainless steel 15 inch cleats at the stern and Sampson post forward
Super structure is aluminum frame
Wash down pump Pacer model SEJLHYC with hose bib starboard side
LED Light fixtures
